OBU V - GPS Tracker with Engine Kill Switch
Professional Installation IP65 Rated

OBU V
Always On Guard

GPS tracker with engine kill switch from the ORIN app. Full control at your fingertips, security always on standby.

Powered by Lynk Secure payment with Lynk

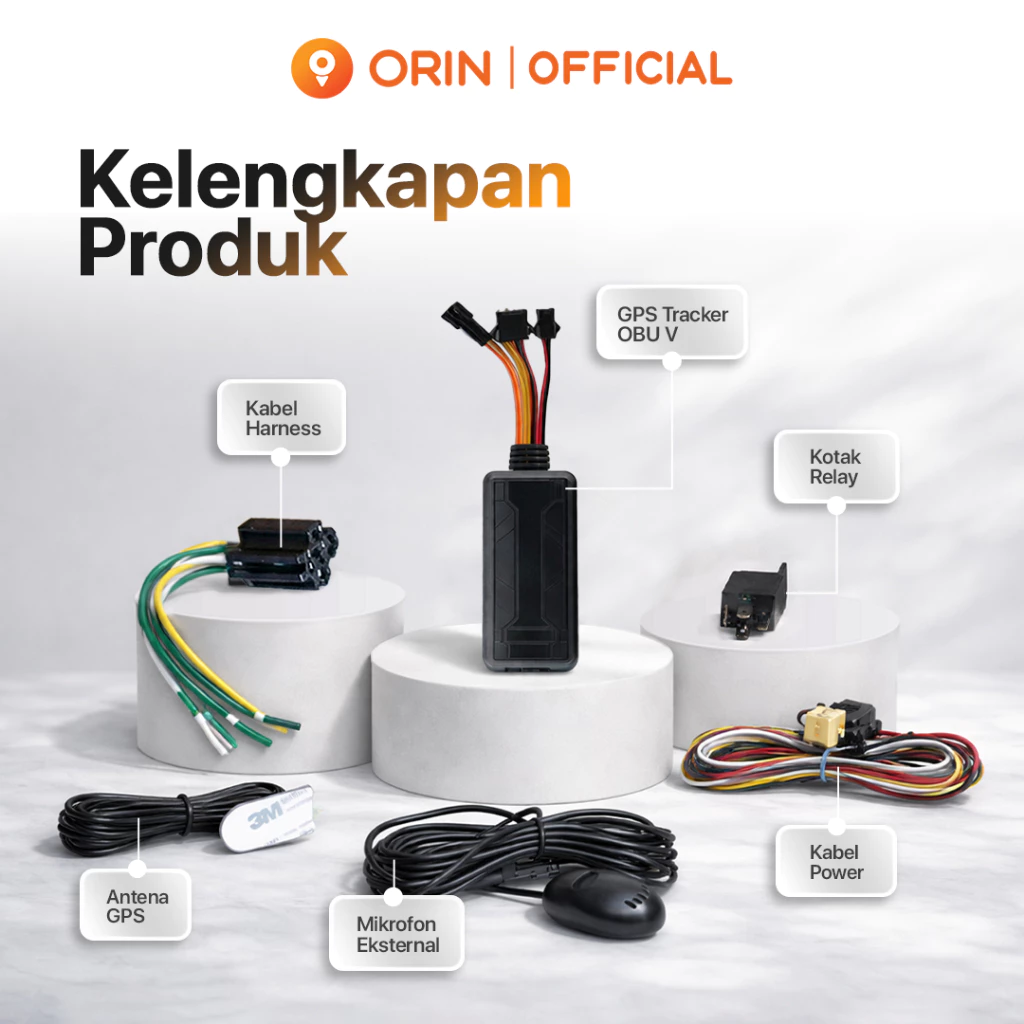

OBU V GPS Tracker 1
OBU V GPS Tracker 2
OBU V GPS Tracker 3
OBU V GPS Tracker 4
OBU V GPS Tracker 5
OBU V GPS Tracker 6

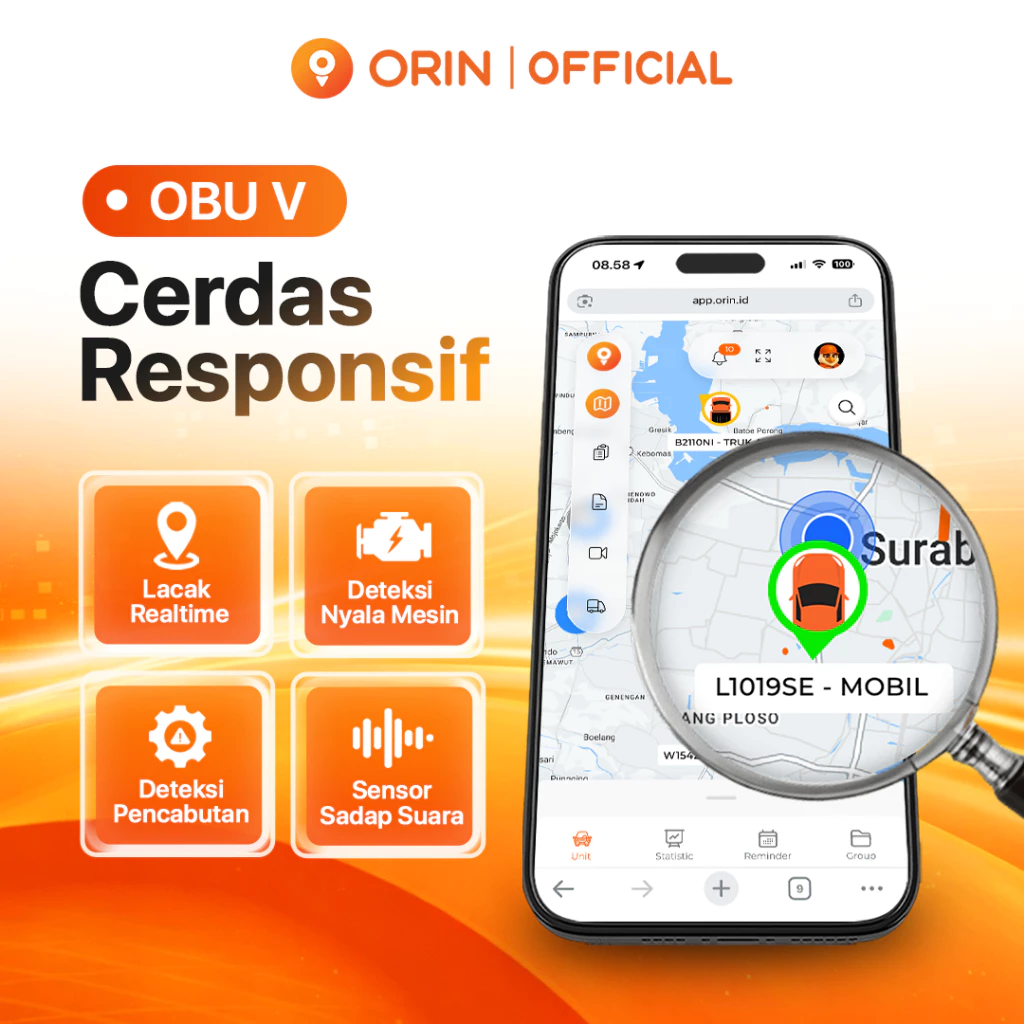

OBU V GPS Tracker 7
OBU V GPS Tracker 8
OBU V GPS Tracker 9
9-90V Alert

Product Video

OBU V Always On Guard - Product Review

Ideal for asset or personal vehicle protection, thanks to its plug-and-play design and always-on security features.

Key Features

Maximum protection with advanced technology for your peace of mind

Realtime Tracking

Wide network coverage across Indonesia

Engine Start Detection

Get alerts when your vehicle is started

Tamper Detection

Alerts for tampering, removal, or hacking attempts

IP65 Rating

Water and dust resistant

9-90V Voltage Range

Withstands voltage from all directions

Super Strong Magnet

Easy to attach on various surfaces

Why Choose OBU V?

GPS tracker with engine kill switch for maximum security

Engine Kill Switch

Full control to shut off your motorcycle engine directly from the ORIN app

24/7 On Guard

Real-time monitoring with instant notifications to your smartphone

110mAh Battery

Long-lasting battery for non-stop tracking

Technical Specifications

Advanced hardware with cutting-edge technology for maximum performance

110
mAh
IPX5
Rating
23.8
Gram
< 2m
Accuracy

Global Navigation Satellite System (GNSS)

Positioning System

GPS, BDS, GLONASS, AGPS, LBS
Positioning Accuracy: < 2m CEP
Tracking Sensitivity: -165 dBm
Acquisition Sensitivity: -148 dBm

Cellular

Network

GSM
Frequency: Quad-band 850/900/1800/1900 MHz

Power

Battery

110 mAh / 3.7V Li-Polymer
Input Voltage: 9–90VDC

Physical & Interface

Physical Specification

Dimensions: 48mm x 29mm x 13.1mm
Weight: 23.8 g

Interface

LED Indication: GNSS (Blue) | Cellular (Green) | Power (Red)
SIM: Nano-SIM
Data Storage: 32 + 32 Mb
Connector: Power Cable & Relay
Antenna: Built-in GPS

Operating Environment

Temperature

Operating: -20°C to +70°C

Humidity & IP Rating

Humidity: 5% – 95%, non-condensing
IP Rating: IPX5

Features

Sensors

Accelerometer, Light sensor
Ignition Detection: ACC Detection
Tamper Alert: Power disconnection

Voice Monitoring

< 3 meters
Orin GPS tracker activation guide

Seri OBU V – Professional Installation

High-level security for your vehicle.

Detailed Specifications

GNSS System
GPS, BDS, GLONASS, AGPS, LBS
Input Voltage
9 – 100V DC (Heavy Equipment Support)
Protection Rating
IP65 (Dust & Water Resistant)
Special Features
Light Sensor (Tamper Alert)
1

Vehicle Installation

Attention!
This unit requires professional installation by a specialized technician.
2

Server Access

Web
app.orin.id
App
ORIN – GPS Tracking
3

Account Registration

1
Click Register Now.
2
Fill in Name, Email, WhatsApp, & Password.
4

Adding Unit to Server

Login > Unit Menu > Click (+) > Fill Data (IMEI, GSM No.) > Click Add Unit.

Performing Reset

If the unit encounters issues, the reset process is carried out with Customer Service guidance.

Contact WA Support Here

Ready to Protect Your Vehicle?

Get OBU V now and enjoy peace of mind with maximum protection for your vehicle.
