OBU F - Car GPS with Engine Kill Feature
Professional Installation IP54 Rated

OBU F
The Most Tough

Real-time tracking GPS with remote engine shutdown feature and stealthy anti-detection design.

Powered by Lynk Secure payment with Lynk

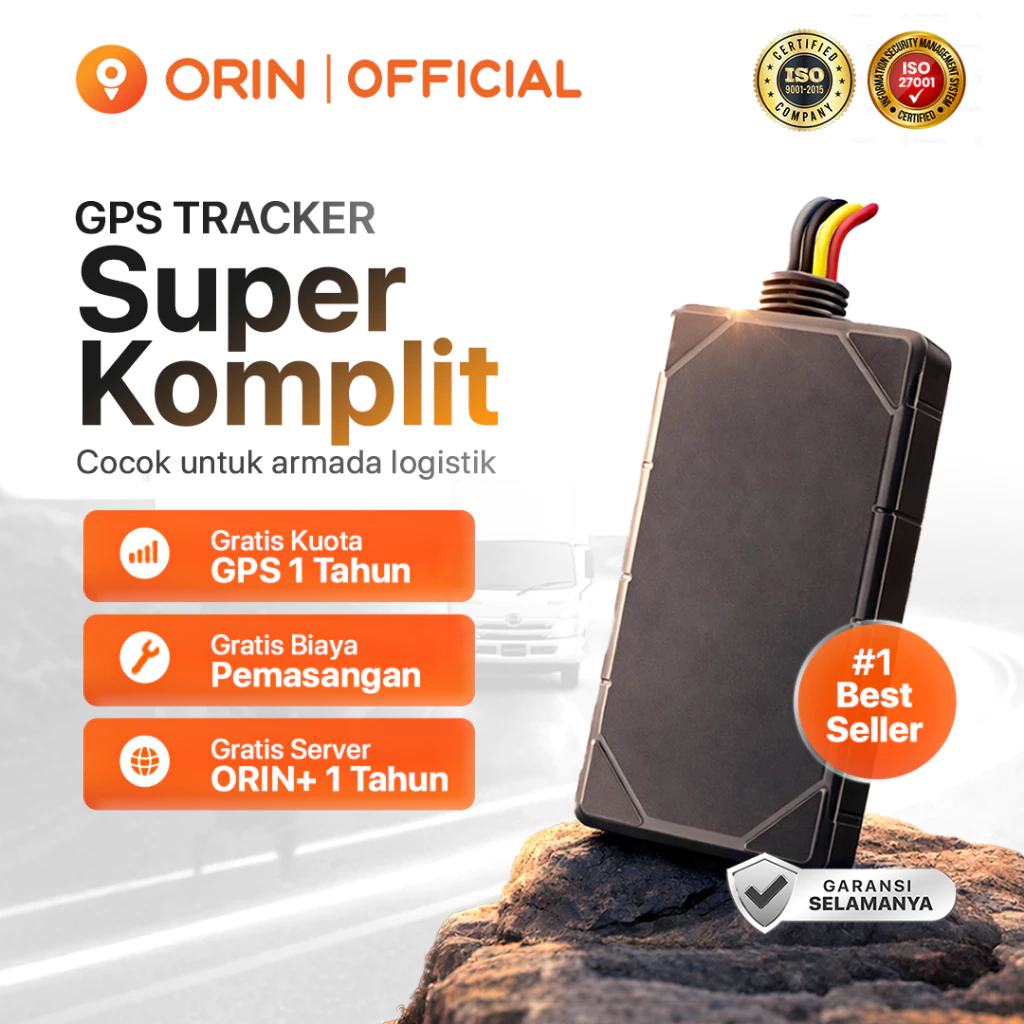

OBU F GPS Tracker 1
OBU F GPS Tracker 2
OBU F GPS Tracker 3
OBU F GPS Tracker 4
OBU F GPS Tracker 5
OBU F GPS Tracker 6
OBU F GPS Tracker 7
OBU F GPS Tracker 8
OBU F GPS Tracker 9
Multi Sensor Powerful

Product Video

OBU F Multi Sensor - Product Review

Versatile GPS for maximum vehicle security, featuring real-time capabilities and robust remote control.

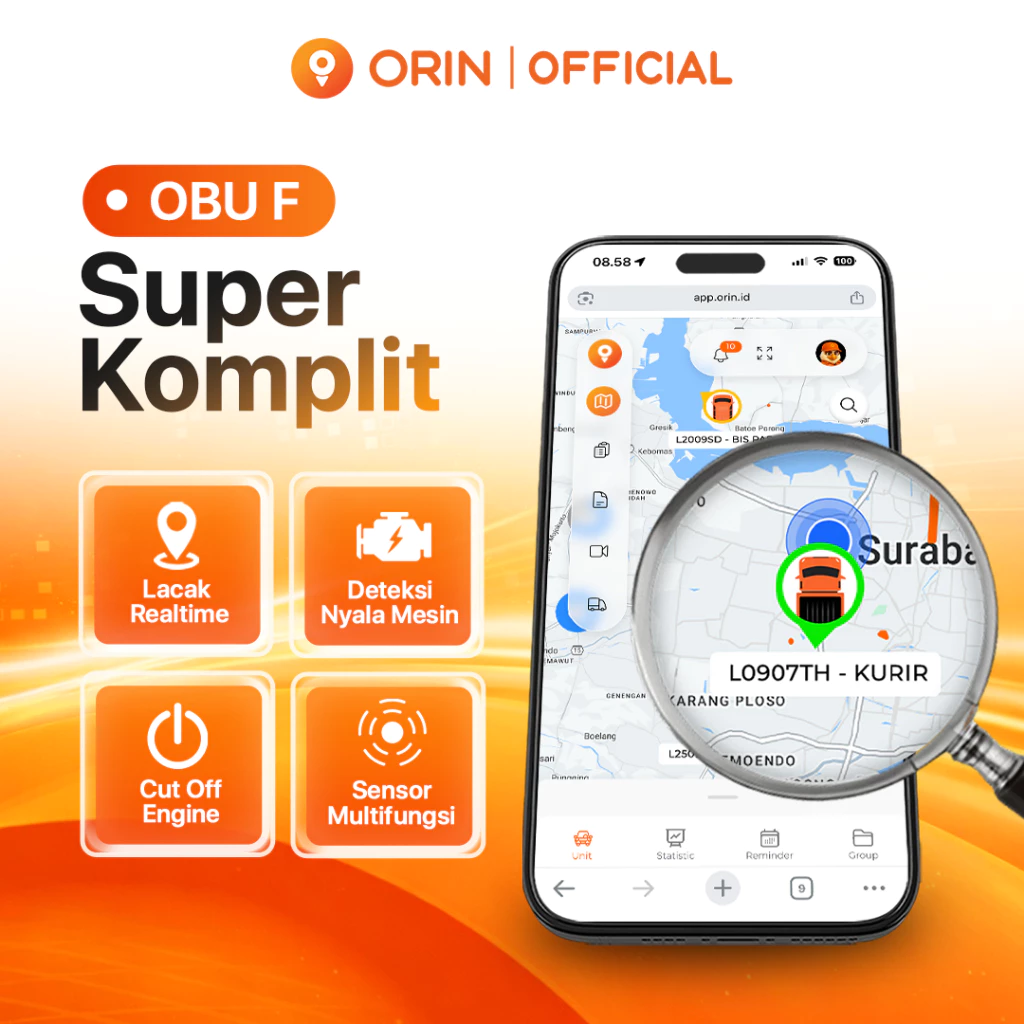

Key Features

Maximum protection with advanced technology for your peace of mind

Realtime Tracking

Wide network coverage across Indonesia

Engine Start Detection

Get alerts when your vehicle is started

Slim Design

Easy to place in hidden areas

Engine Kill

Access your vehicle engine remotely

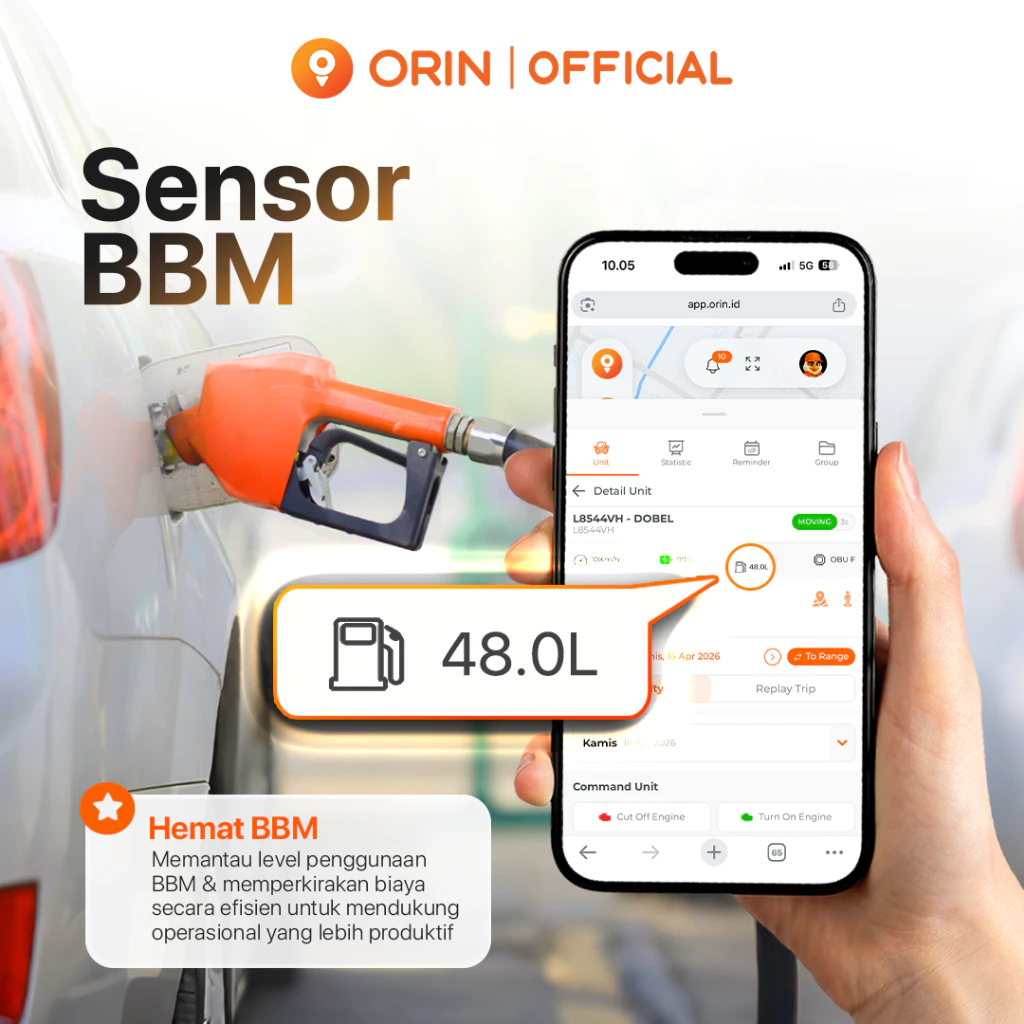

Multi-function Sensor

Broad support for various sensors

Suitable for Fleet

Full capabilities ideal for business

Why Choose OBU F?

Car GPS tracker with engine kill feature for maximum security

Engine Kill

Full control to shut off your car engine directly from the ORIN app

On Alert 24/7

Real-time monitoring with instant notifications to your smartphone

170mAh Battery

Long battery life for uninterrupted tracking

Technical Specifications

Advanced hardware with the latest technology for maximum performance

170
mAh
IP54
Rating
161
Gram
<2.5m
Accuracy

Global Navigation Satellite System (GNSS)

Positioning System

GPS + LBS
Positioning Accuracy: < 2.5m CEP
Tracking Sensitivity: -165 dBm
Acquisition Sensitivity: -148 dBm

Cellular

Network

GSM
Frequency: Quad-band 850/900/1800/1900 MHz

Power

Battery

170 mAh Li-Ion battery (0.63 Wh)
Input Voltage: 6-30 VDC

Physical & Interface

Physical Specification

Dimensions: 79mm x 43mm x 12mm (L x W x H)
Weight: 161 g

Interface

LED Indication: 2 status LED lights
SIM: Micro SIM
Data Storage: 128 Mb

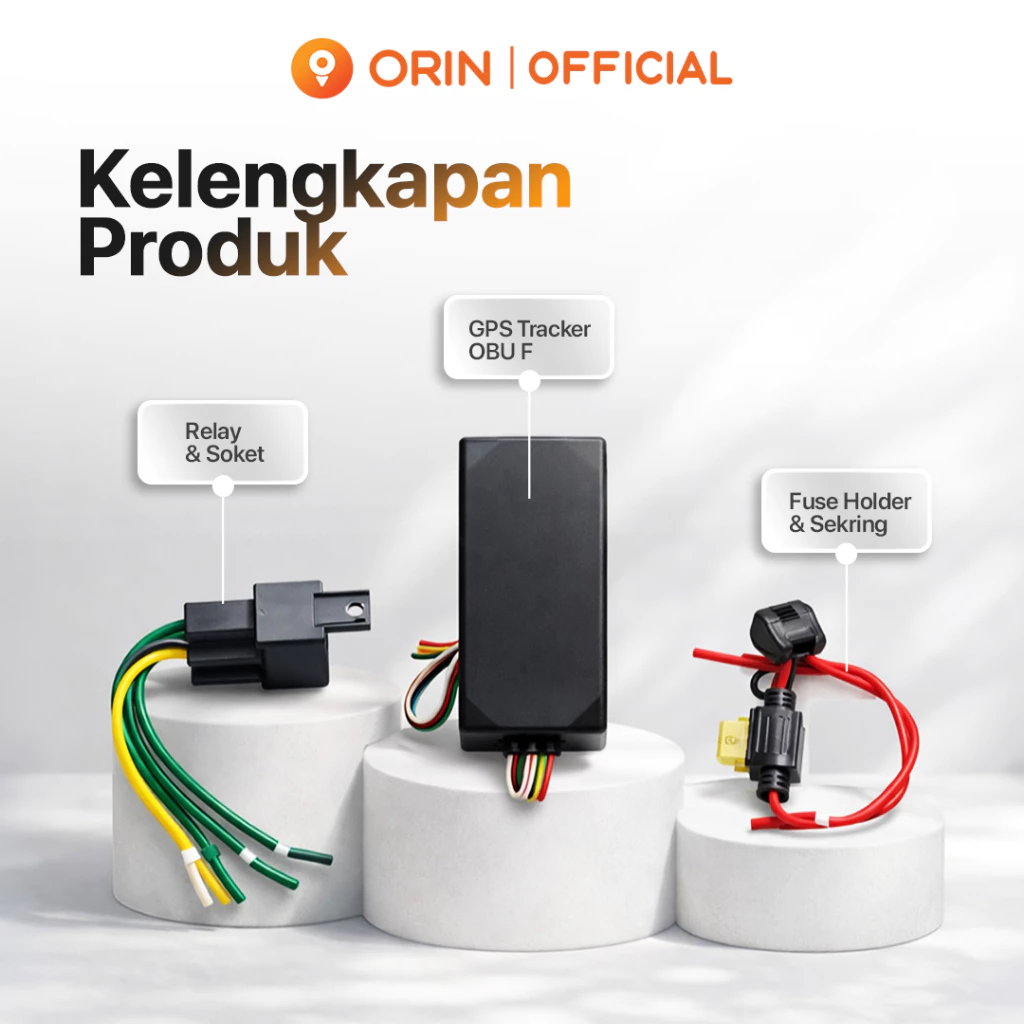

Connector: Power Cable
Antenna: Built-in GPS & GSM Antenna

Operating Environment

Temperature

Operating: -40 °C to +85 °C

Humidity & IP Rating

Humidity: 5% – 95%, non-condensing
IP Rating: IP54

Features

Sensors

Accelerometer
Ignition Detection: Digital Input 1, Accelerometer, External Power Voltage, Engine RPM (OBDII dongle)
Tamper Alert: Power disconnection
Orin GPS tracker activation guide

OBU F Series - Professional Installation

High-Performance Tracking Solution.

Detailed Specifications

Multi-GNSS
GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS
Power Input
6-30V DC / 170 mAh Li-Ion
Operating Temperature
-40 °C to +85 °C (Extreme)
Ignition Detect
Digital Input, Accelerometer, Voltage
Attention!
This unit requires professional installation by a certified technician for power cable setup.
1

Vehicle Installation

Attention!
This unit requires professional installation by a certified technician for power cable setup.
2

Server Access

Web
app.orin.id
App
ORIN - GPS Tracking
3

Account Registration

1
Click Register Now
2
Fill in Name, Email, WhatsApp, & Password
4

Adding Unit to Server

Login > Unit > Click (+) > Fill in Data (IMEI, GSM Number, Unit Type, Unit Name) > Click Add Unit

Performing a Reset

If the unit encounters issues, you can perform a self-reset via:

App: Select Unit > Click Restart Unit
Web: Select Unit > Click Reset Unit

📞 Contact Our Support

Need help? Our team is ready to assist you

WhatsApp Support
0813 2929 3939

Ready to Protect Your Vehicle?

Get the OBU F now and enjoy peace of mind with maximum protection for your vehicle.
