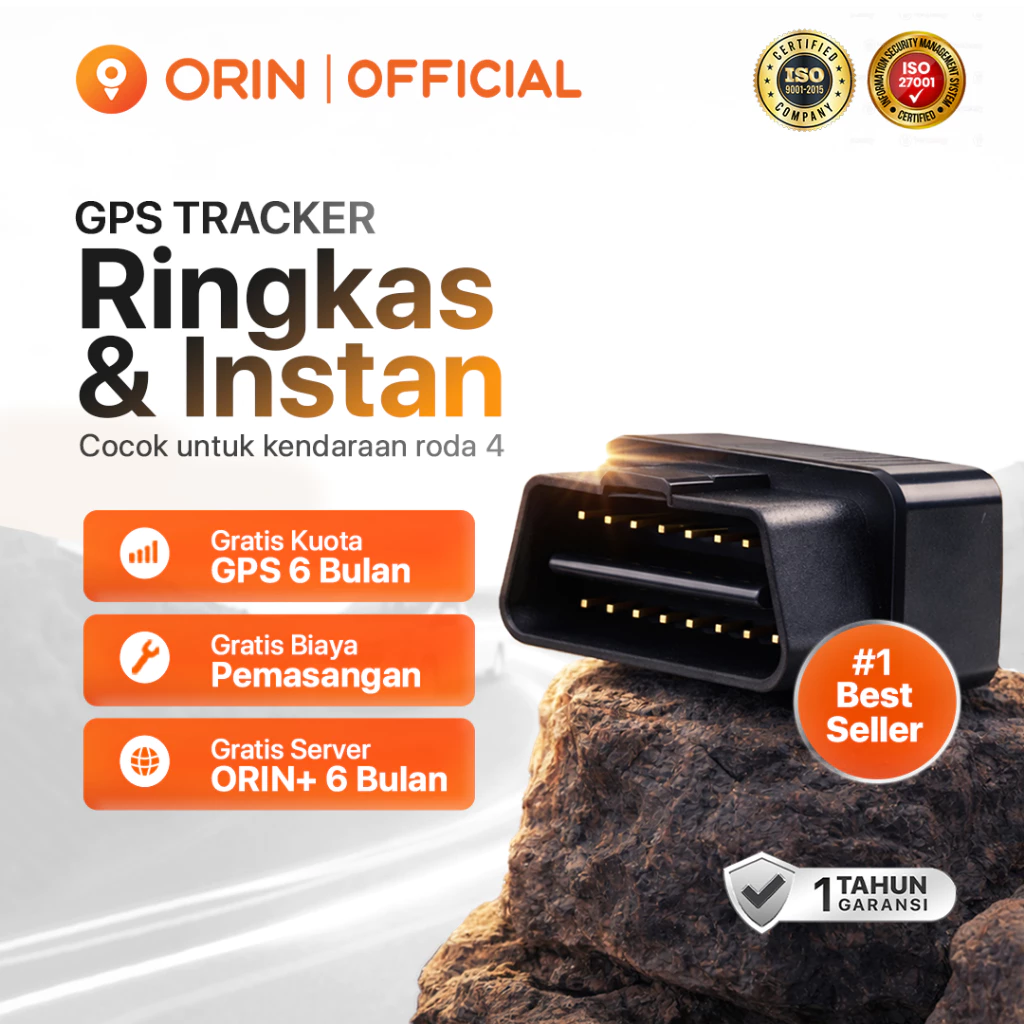

OBU D - Mini Powerful Plug & Play GPS Tracker
Plug & Play OBD II Ready

OBU D
The Most Mini & Powerful

Super simple plug & play tracker, detects engine and sends alert if forcibly removed.

Powered by Lynk Secure payment with Lynk
OBU D GPS Tracker 1 OBU D GPS Tracker 2 OBU D GPS Tracker 3 OBU D GPS Tracker 4 OBU D GPS Tracker 5 OBU D GPS Tracker 6 OBU D GPS Tracker 7 OBU D GPS Tracker 8 OBU D GPS Tracker 9
Plug & Play Mini

Product Video

OBU D Mini GPS - Product Overview

A practical GPS suitable for individual users and rental businesses, with its compact form that doesn't sacrifice performance.

Premium Features

Maximum protection with advanced technology for your peace of mind

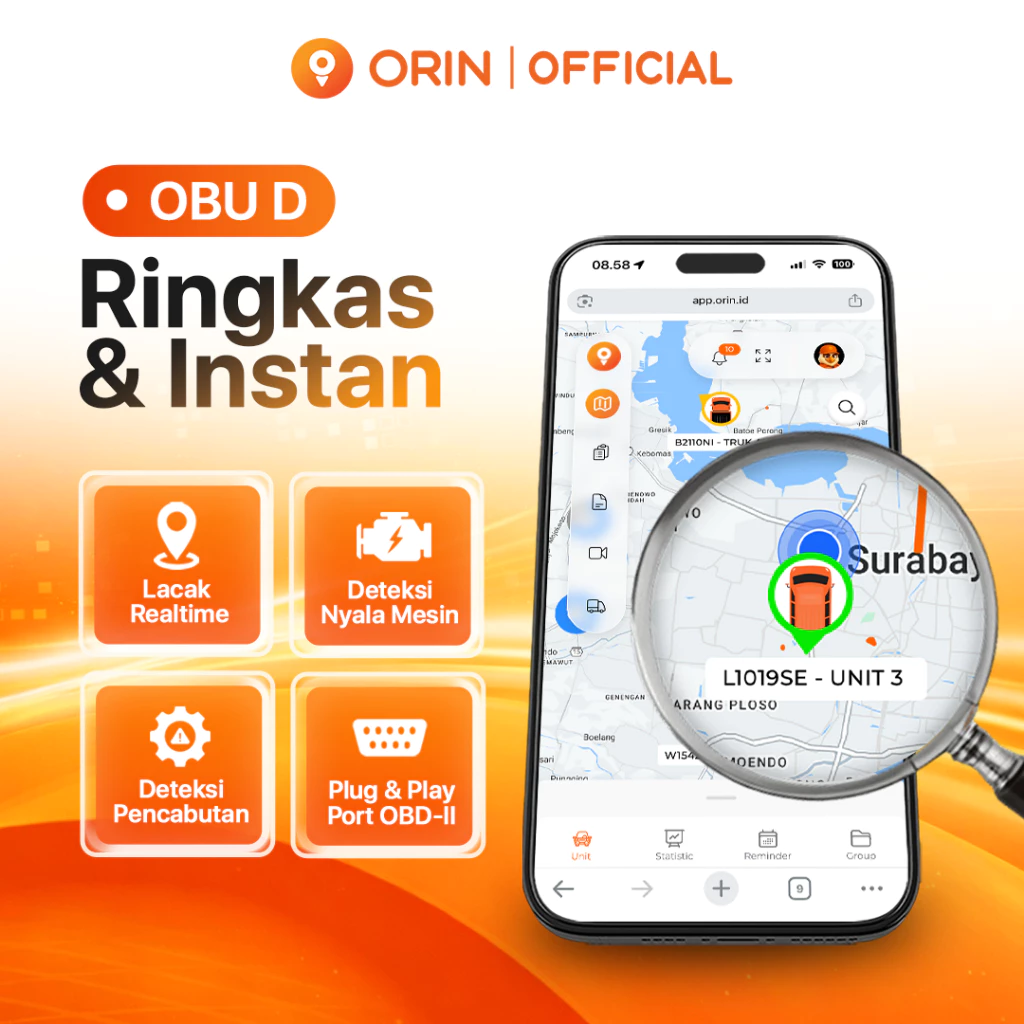

Real-time Tracking

Wide network coverage across Indonesia

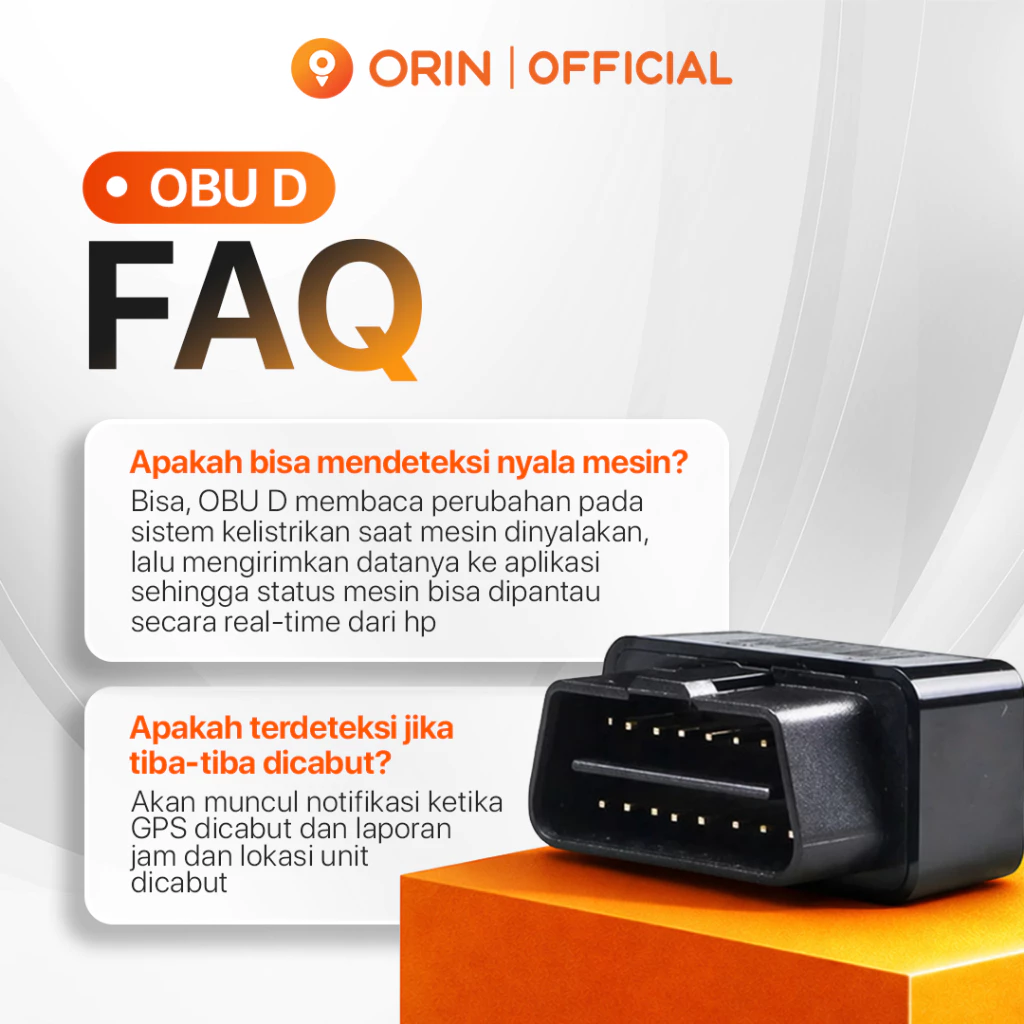

Engine Detection

Get alerts when your vehicle is started

Removal Detection

Alert assistance when device is removed

Easy Installation

Hassle-free Plug & Play installation

Compact & Practical

Can be placed in hidden areas

For 4+ Wheels

For cars up to trucks with OBD port

Why Choose OBU D?

The best plug & play tracking solution for 4-wheel vehicles and above

5-Minute Installation

Simply plug into OBD II port, no professional technician needed

High Accuracy

GPS + LBS with accuracy under 10 meters for precise tracking

Anti-Theft

Automatic alert when device is forcibly removed from OBD port

Technical Specifications

Advanced hardware with cutting-edge technology for maximum performance

50
mAh
30
Gram
< 10m
Accuracy
OBD
Connector

Global Navigation Satellite System (GNSS)

Positioning System

GPS + LBS
Positioning Accuracy: < 10 meters
Tracking Sensitivity: -165 dBm
Acquisition Sensitivity: -148 dBm

Cellular

Network

GSM
Frequency: 850/900/1800/1900 MHz

Power

Battery & Power

50mAh / 3.7V Li-Polymer
Input Voltage: 9–36VDC
Standby Current: 5mA

Physical & Interface

Physical Specification

Dimensions: 45.0mm × 22.5mm × 30.0mm
Weight: 30 g

Interface

LED Indication: Power, GPS, GSM
SIM: Nano-SIM
Data Storage: 32 + 32 Mb
Connector: OBD Standard Port
Antenna: Built-in GPS & GSM

Operating Environment

Temperature

Operating: -20°C to +70°C

Humidity

Humidity: 5% – 95%, non-condensing

Features

Detection Features

Ignition Detection: ACC Detection
Tamper Alert: Power disconnection
ORIN GPS Tracker Activation Guide

OBU D Series – Plug & Play

Reliable plug & play tracking solution.

Product Specifications

Positioning
GPS + LBS
Input Voltage
9 – 36V DC
Battery
50mAh Li-Polymer
Connector
OBD Standard Port
Easy Installation!

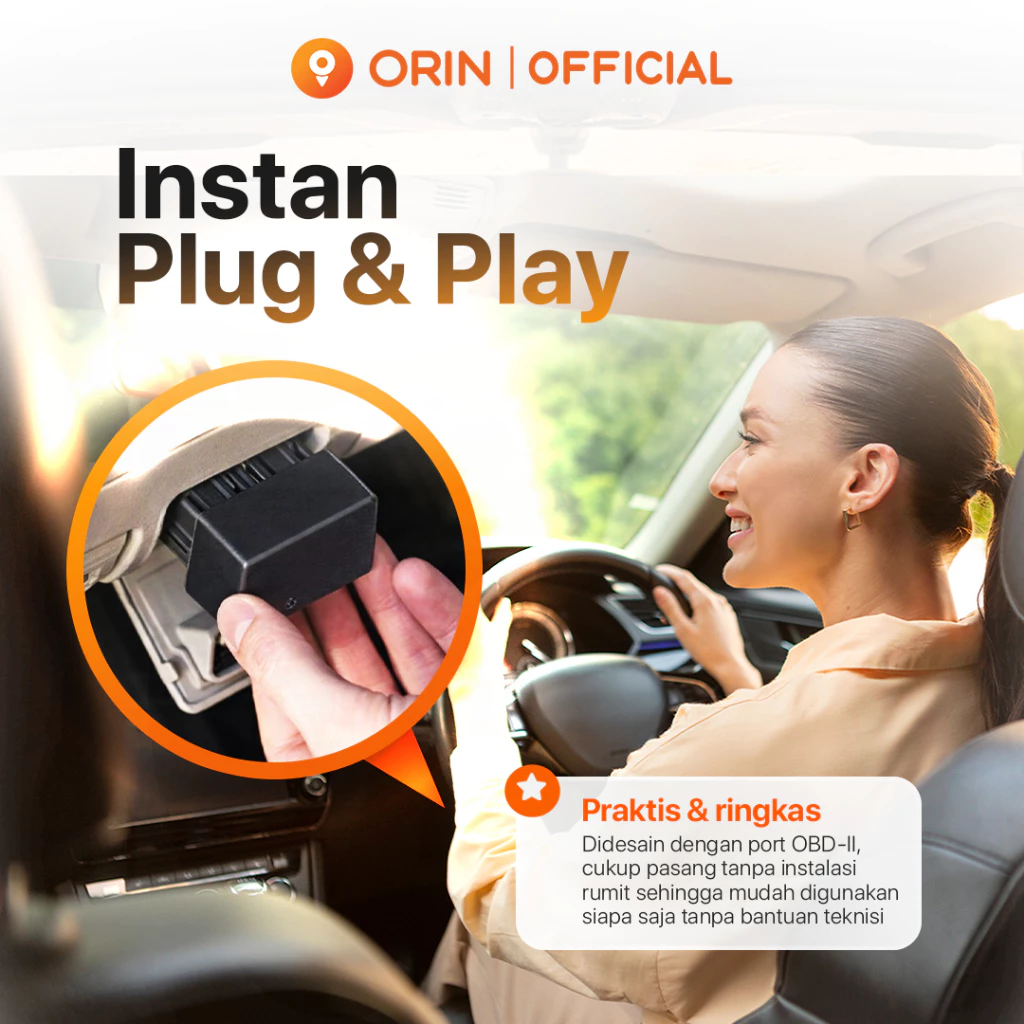

This unit is plug & play type, simply plug into your vehicle's OBD II port.
1

Install Unit

1
Find OBD II port in your vehicle (usually under the dashboard)
2
Plug OBU D into OBD II port
2

Access Server

Web
app.orin.id
App
ORIN – GPS Tracking
3

Register Account

1
Click Register Now
2
Fill in Name, Email, WhatsApp, & Password
4

Add Unit

Login > Unit > Click (+) > Fill Data (IMEI, GSM Number, Unit Type, Unit Name) > Click Add Unit

Performing Reset

If the unit has issues, you can perform a reset independently via:

App: Select Unit > Click Restart Unit
Web: Select Unit > Click Reset Unit

📞 Contact Our CS

Need help? Our team is ready to assist you

WhatsApp Support
0813 2929 3939

Ready to Protect Your Vehicle?

Get OBU D now and enjoy the ease of plug & play without complicated installation.
